SPECIFICATIONS

Brand Name: NONE

Certification: CE

Connection: PU hose or Nylon hose

Fluid Type: Air / Vacuum

For Pipe Tube: M5/4mm/6mm/8mm/10mm/12mm

Function: air speed cpmtrpller

High-concerned chemical: none

Material: Brass with nickle plated/Plastic

Max Pressure: 1.5mpa

Min Pressure: 1.32 Mpa

Model Number: PC/PCF/PB/PKB/PH/PL/PLF/PX/SL

Motivity Type: Other

Origin: Mainland China

Proof Vacuum Pressure: -100Kpa(10Torr)

Thread: M5 1/8 1/4 3/8 1/2 BSP

Type: Fittings

Used Pressure: 0-1.0mpa

Working Pressure: o~0.9 Mpa

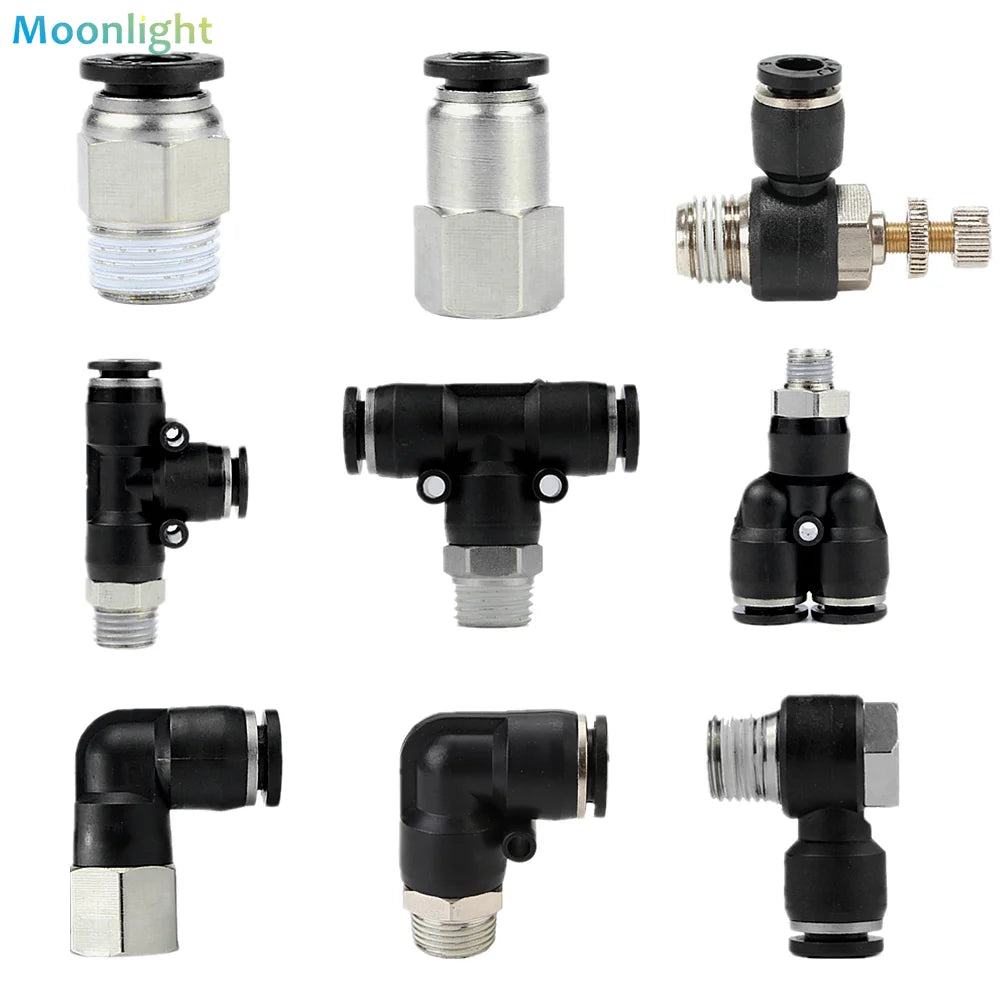

Pneumatic Air Connector Fitting PC/PCF/PB/PKB/PH/PL/PLF/PX/SL 4mm 6mm 8mm Thread 1/8" 1/4 3/8 1/2 Black Plastic Hose Fittings Pipe Intubation

Product Information:

Male Thread Size: 1/8", 1/4", 3/8", 1/2"BSPT

Fit For Tube Outer Diameter: 4mm 6mm 8mm 10mm 12mm

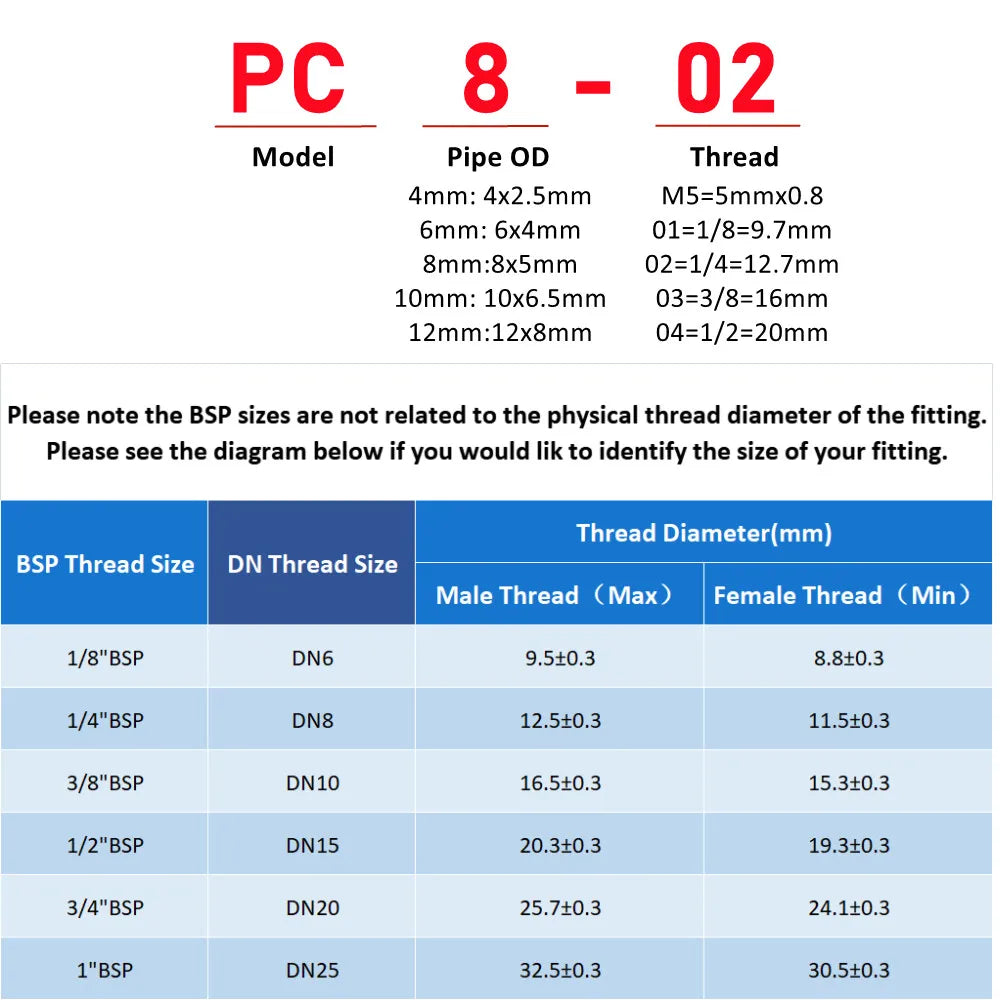

Tips:

01=1/8" Threaded≈9.7mm

02=1/4" Threaded≈12.7mm

03=3/8" Threaded≈16mm

04=1/2" Threaded≈20mm



Type: Pneumatic air hose fittings/ One touch hose connector/ Pneumatic fittings



Connector Type: 4mm,6mm,8mm 10mm,12mm OD Hose

Fluid Type:  Air / Vacuum/Water

Operating Pressure:  0~1.0Mpa

Operating Temperature Range: 0~60C

Fit For Tube Material:  PU / Nylon, Polyurethane(PU/PE/PA/PVC/Nylon Hose)

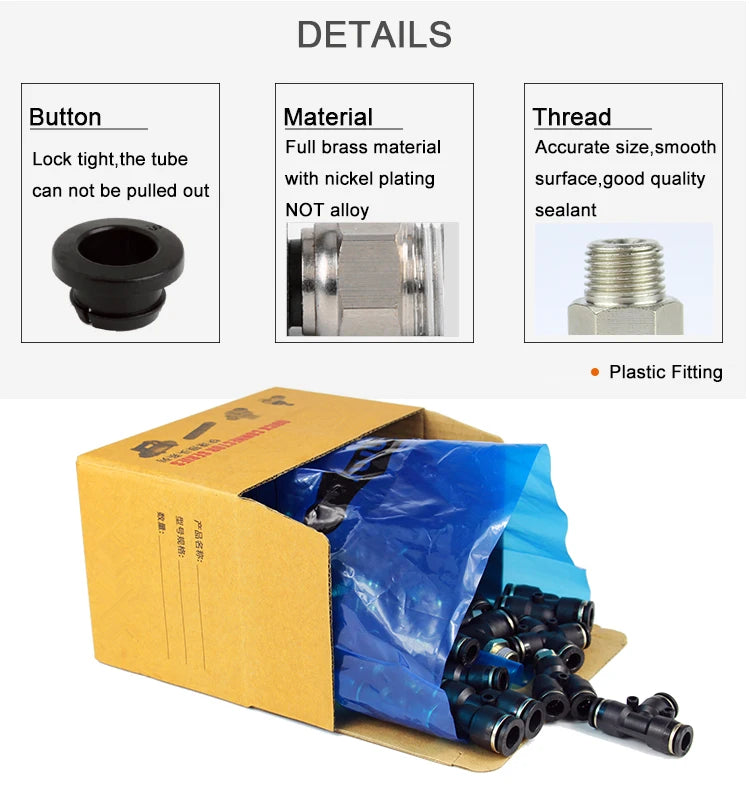

Quick Fitting Material:  PPS Resin + Copper-nickel Plating

Quick Fitting Color:  Black





Features 1. Designed for Polyurethane or Nylon tubing.

2. Simple installation pneumatic push in connector.

3. After installation, the direction of the tube can be changed freely.

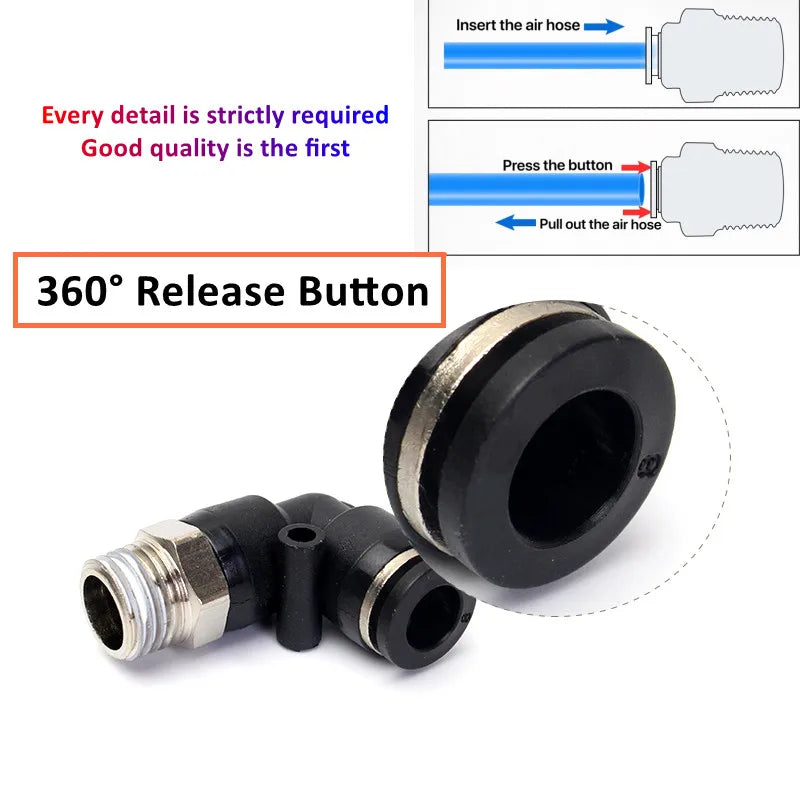

4. Elliptical release ring help to connect tube easily by manual, no special tools required.

5. Outside (and Inside where applicable) hexagonal wrench tightening.

6. This Quick fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment.

Note: 1.Due to the difference between different monitors, the picture may not reflect the actual color of the item.

2.Please allow 1-2mm error.



Package:1 PCSQuick Fitting

More items, please contact us
