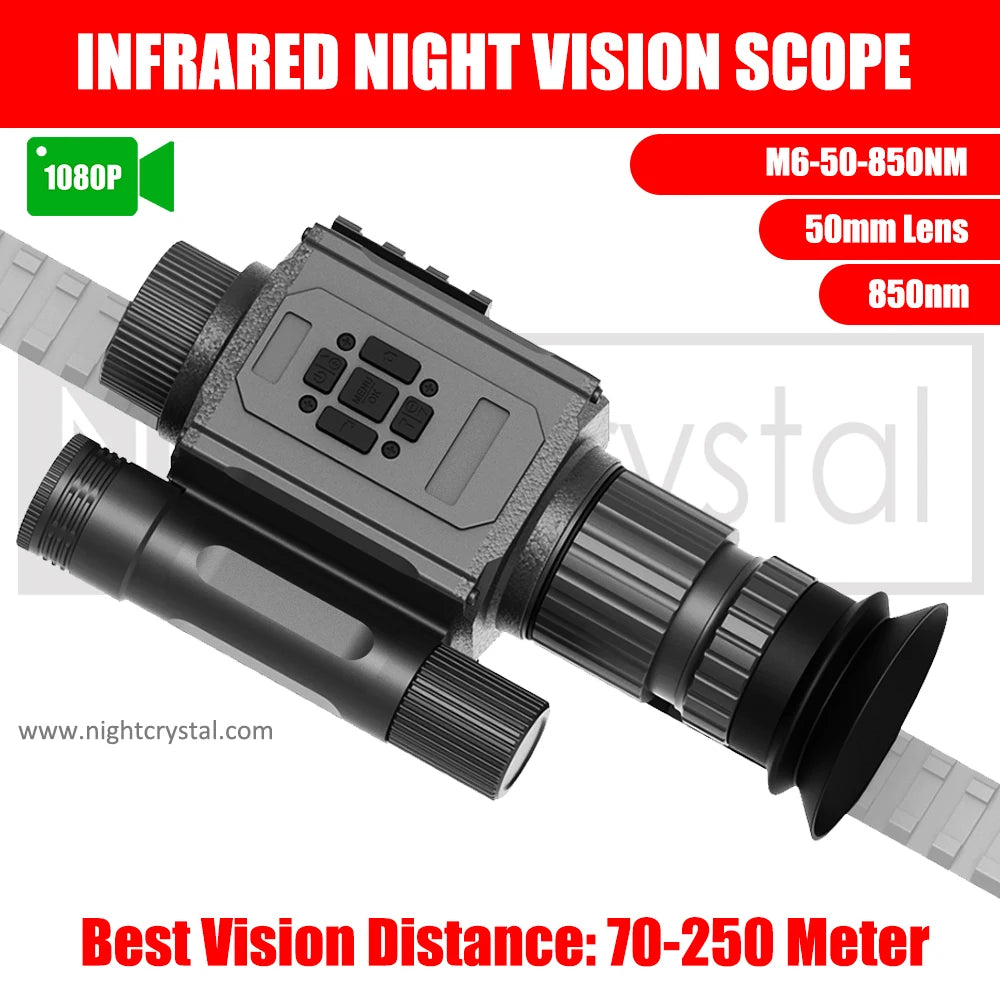

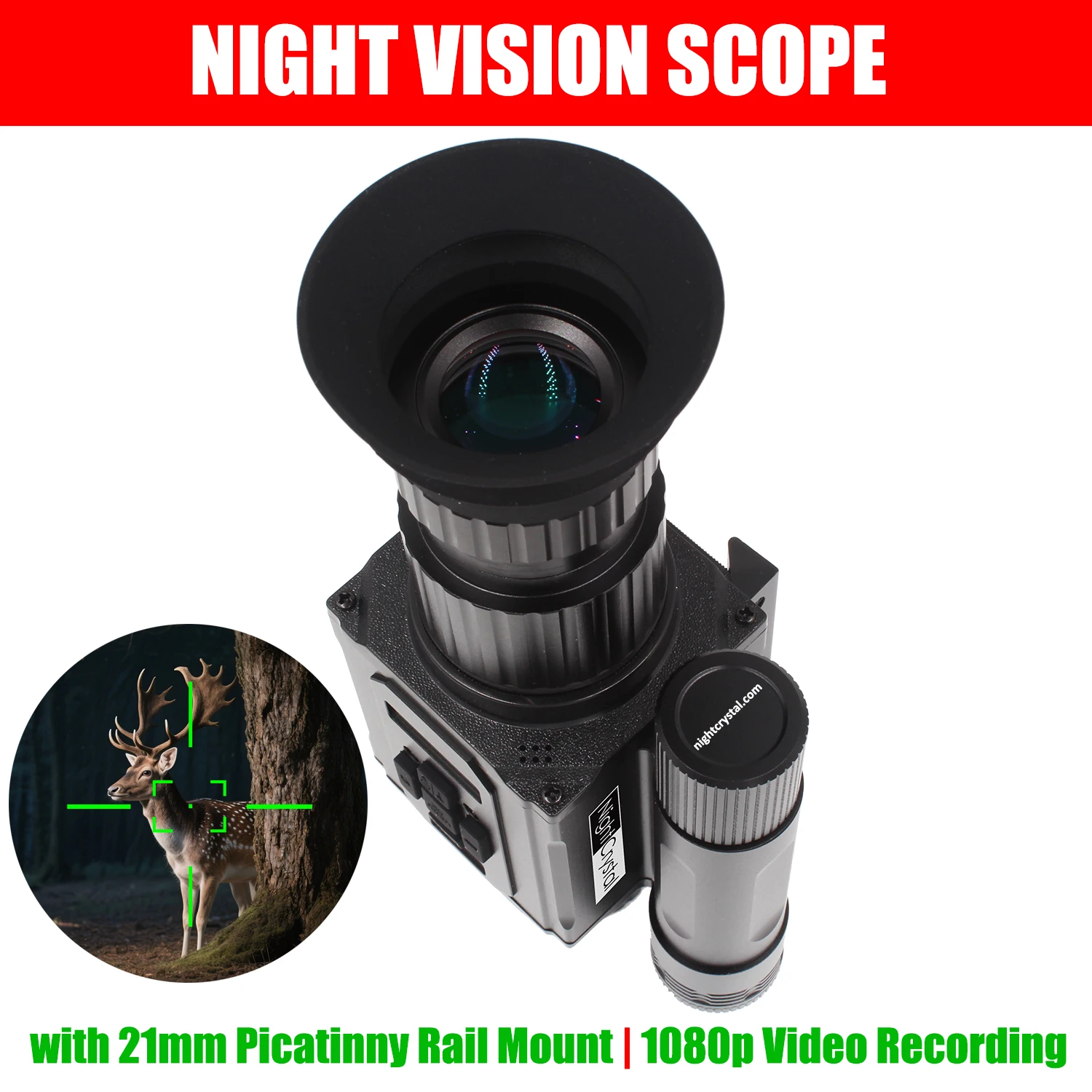

Megaorei NK008 Plus Night Vision Scope Infrared Hunting Camera with 21mm Picatinny Rail Mount & OLED 1.4" Screen & Built-in IR

1. High-Definition Clarity for Day and Night: Experience unmatched image quality with the NightCrystal NC6 Night Vision Scope, featuring 1920x1080p video recording and a 1.4-inch OLED HD display. Enjoy full-color vision from 2m to infinity in daylight and sharp black-and-white imaging at night. With a low-light sensitivity of >0.001 Lux, see up to 300 meters even in near-total darkness.

2. Flexible Magnification & Wide Viewing Angle: The 5X optical magnification combined with a 22.4° field of view ensures versatile performance for any outdoor scenario. Whether observing wildlife, scouting terrain, or navigating at night, this night vision monocular delivers precise details with comfort and ease.

3. Capture and Relive Every Detail: Document your adventures with built-in video recording and playback. The advanced 3MP sensor and 50mm focal length lens ensure crisp, high-resolution imagery. Ideal for outdoor exploration, wildlife observation, or tactical applications, you’ll never miss an important moment.

4. Powerful 940nm or 850nm Infrared Performance: Equipped with a built-in 940nm IR illuminator, this night vision scope delivers exceptional visibility in complete darkness. Adjustable IR brightness levels allow you to adapt to different nighttime environments, ensuring clarity and performance in hunting, camping, and security scenarios.

5. Durable, Compact & User-Friendly: The lightweight and ergonomic design makes the NC6 ideal for extended use. Built to withstand rugged conditions, it features an anti-shock design that has passed a 2-meter drop test, ensuring reliability in the field. The intuitive interface allows beginners and professionals alike to operate with ease.

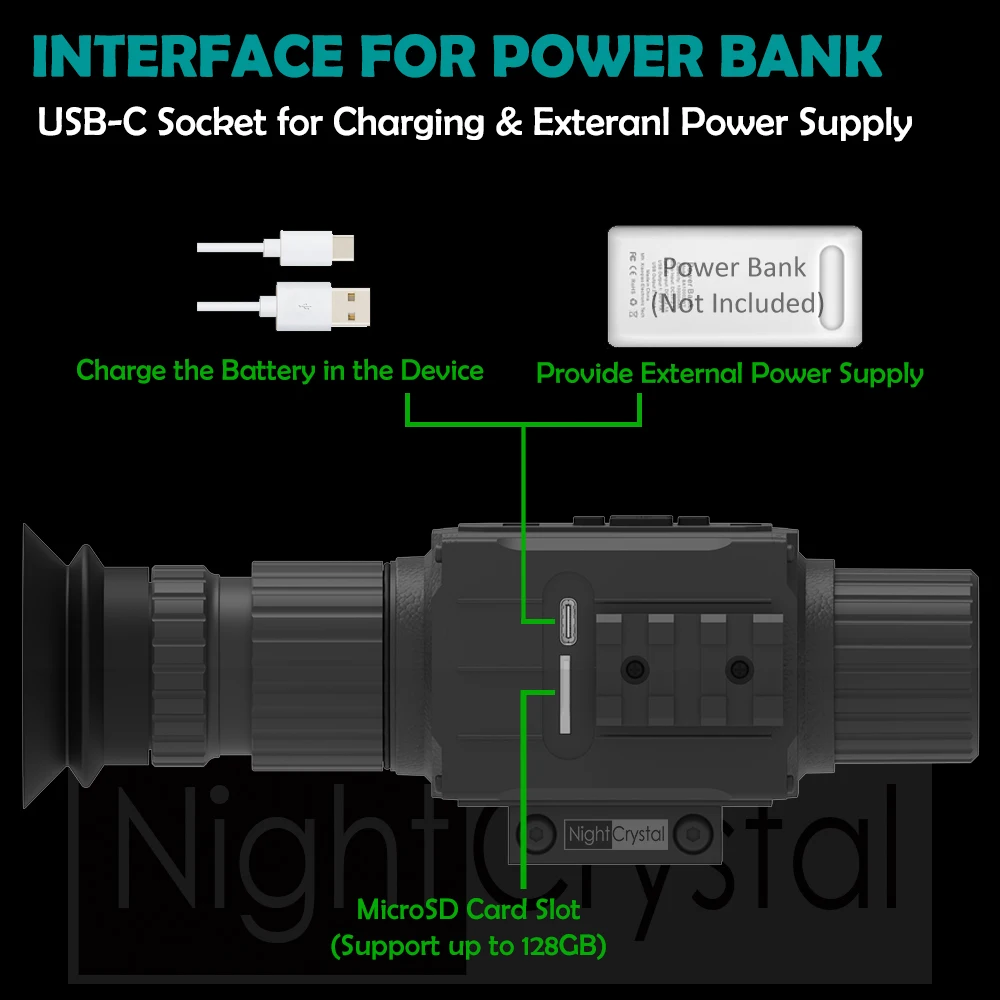

6. Long-Lasting Battery & USB-C Power Support: Powered by a rechargeable 2600mAh battery, enjoy up to 6 hours of operation with IR off and 1.5 hours with IR on. For extended field use, connect a USB-C power bank for uninterrupted power. Ideal for overnight hunting trips, security patrols, and surveillance missions.

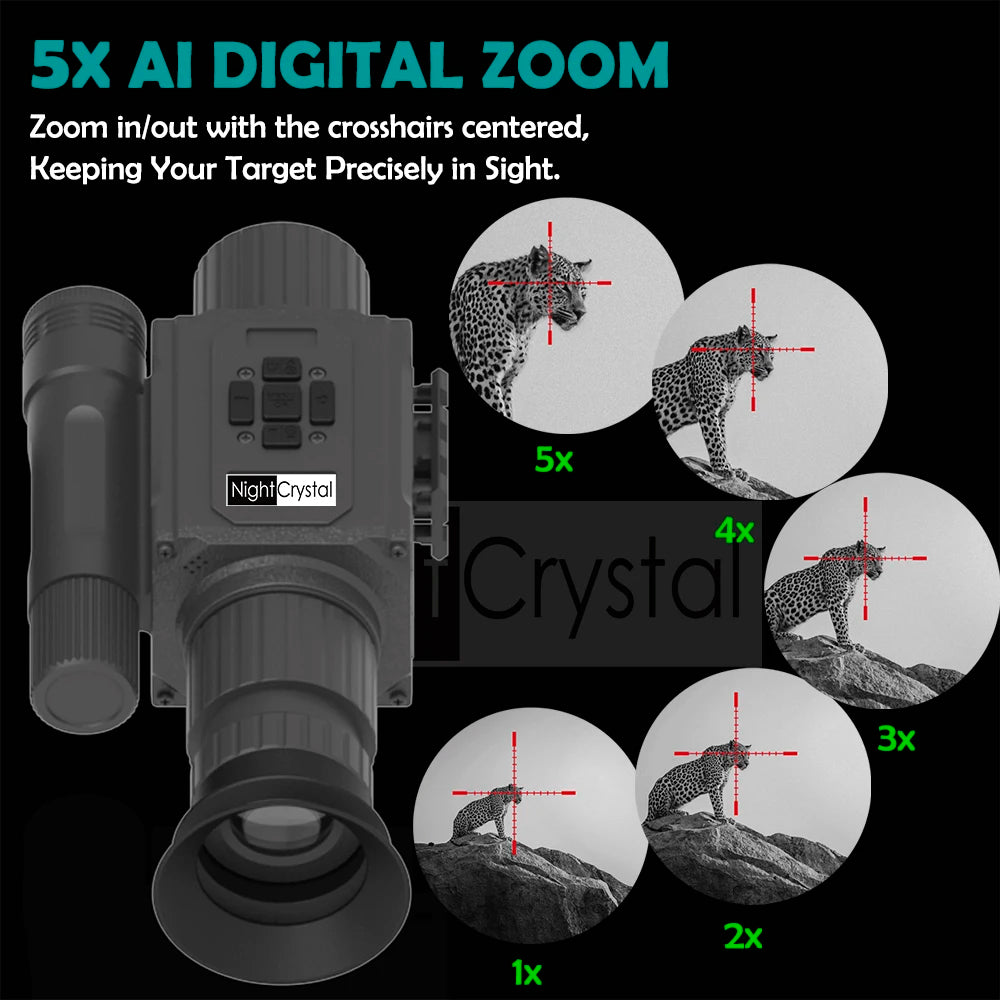

7. AI Zoom & Adjustable Crosshairs for Precision: Enhance your targeting accuracy with AI Zoom technology, centering zoom on the crosshairs for improved precision. The adjustable crosshairs provide customization options for various shooting scenarios, making this an essential tool for hunters and tactical professionals.

Specifications:

Display: 1.4-inch circular AMOLED screen, full viewing angle display
Camera Sensor: 2MP HD 1080P
Lens: 16mm/25mm/35mm/50mm focal length (Not Diameter)
Infrared Light: Built-in 940nm or 850nm IR illuminator with adjustable brightness
Digital Zoom: 1X-5X
Night Vision Range: 100-300m
Battery Life: 2600mAh, 1.5 hours with IR on, 5-6 hours with IR off
Work Voltage: 3.7V
Video Resolution: 1920x1080P (MOV format)
Storage: 32G MicroSD card
Functions: Photo & Video Recording, AI Zoom, Adjustable Crosshairs
Durability: Anti-shock, passed 2M drop test

Calibration

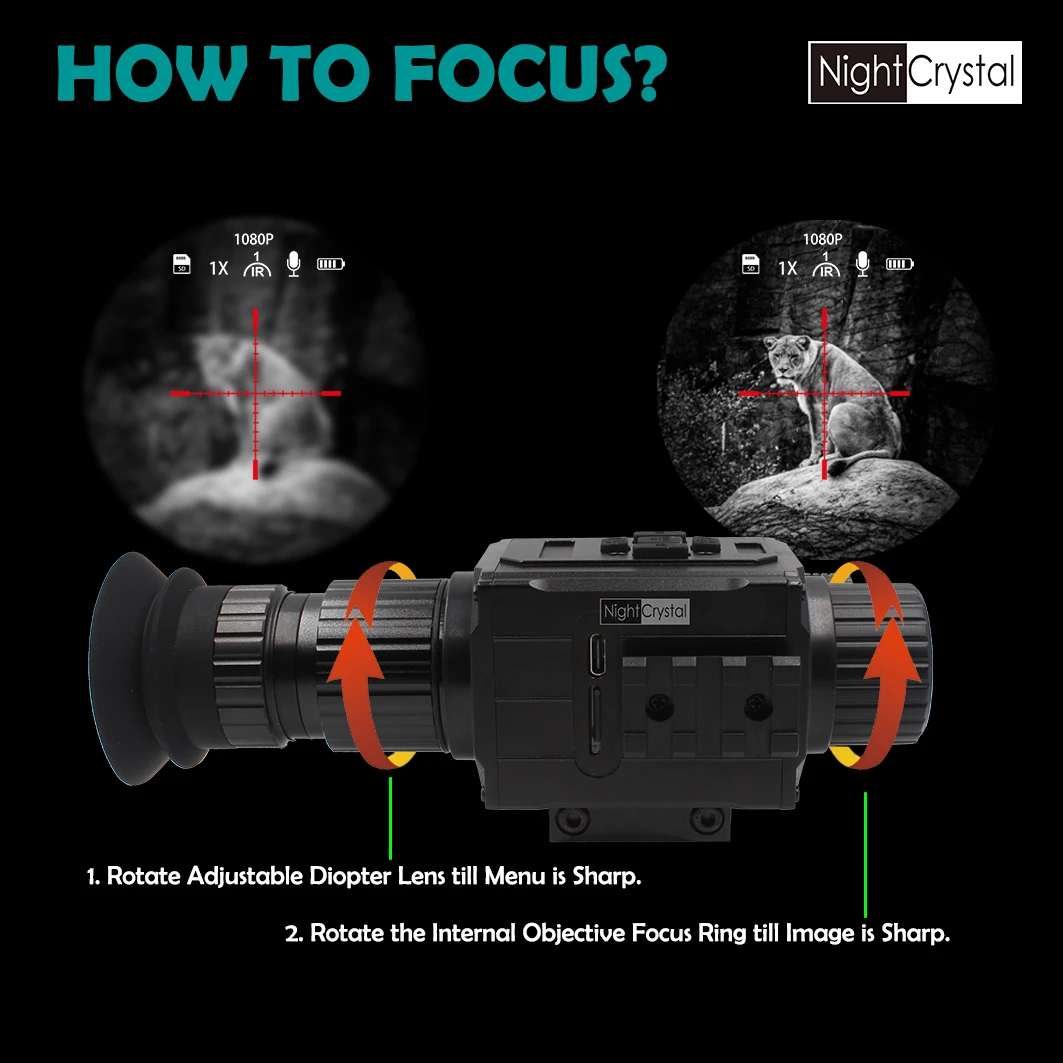

FOCUS:
1. Rotate the Diopter Lens to achieve a clear view of the menu and interface.
2. Use the Objective Lens Focusing Wheel to sharpen the view of distant objects. Adjust until the target appears crisp and well-defined.

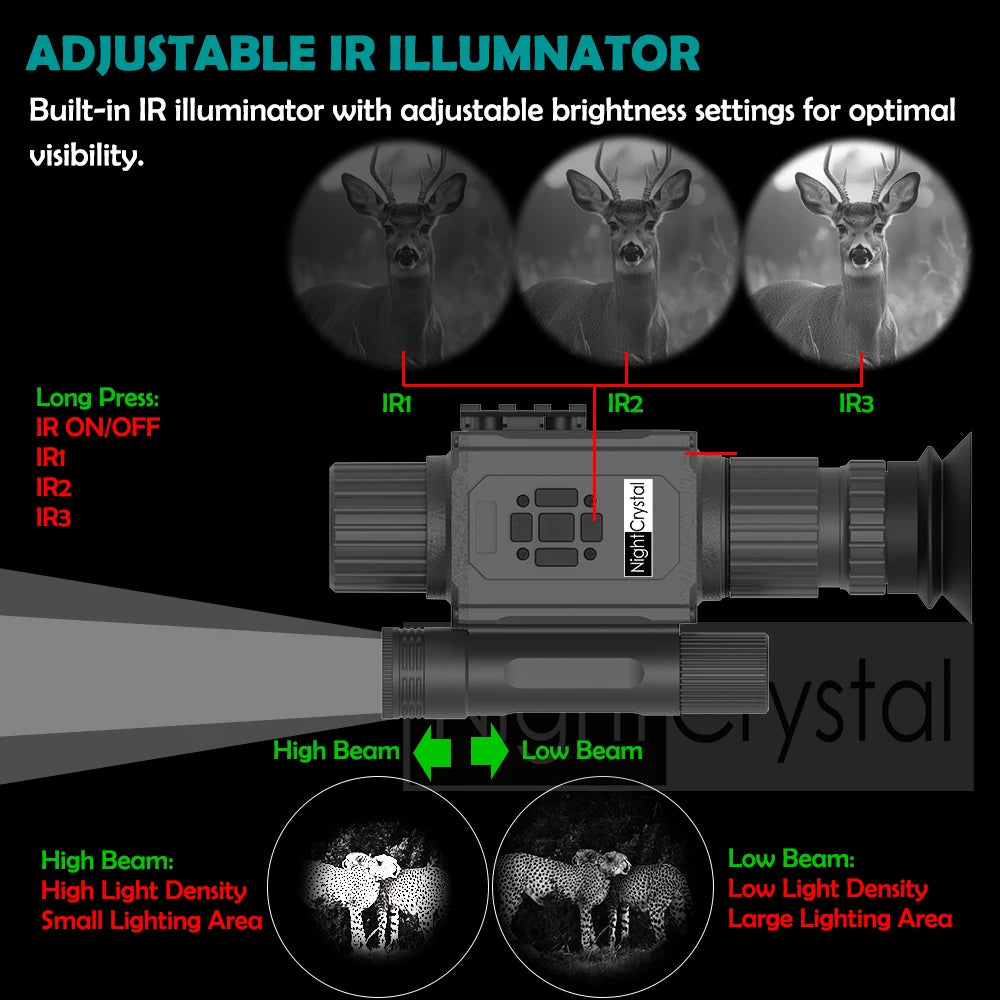

IR Adjustment:
1. IR Activation: Press and hold the IR button to toggle through power levels (IR0/IR1/IR2/IR3).
2. Beam Adjustment: Stretch or compress the flashlight head to widen or narrow the beam focus.
3. Pro Tips: Use lower IR levels for short-range observation and higher levels for long-range visibility.

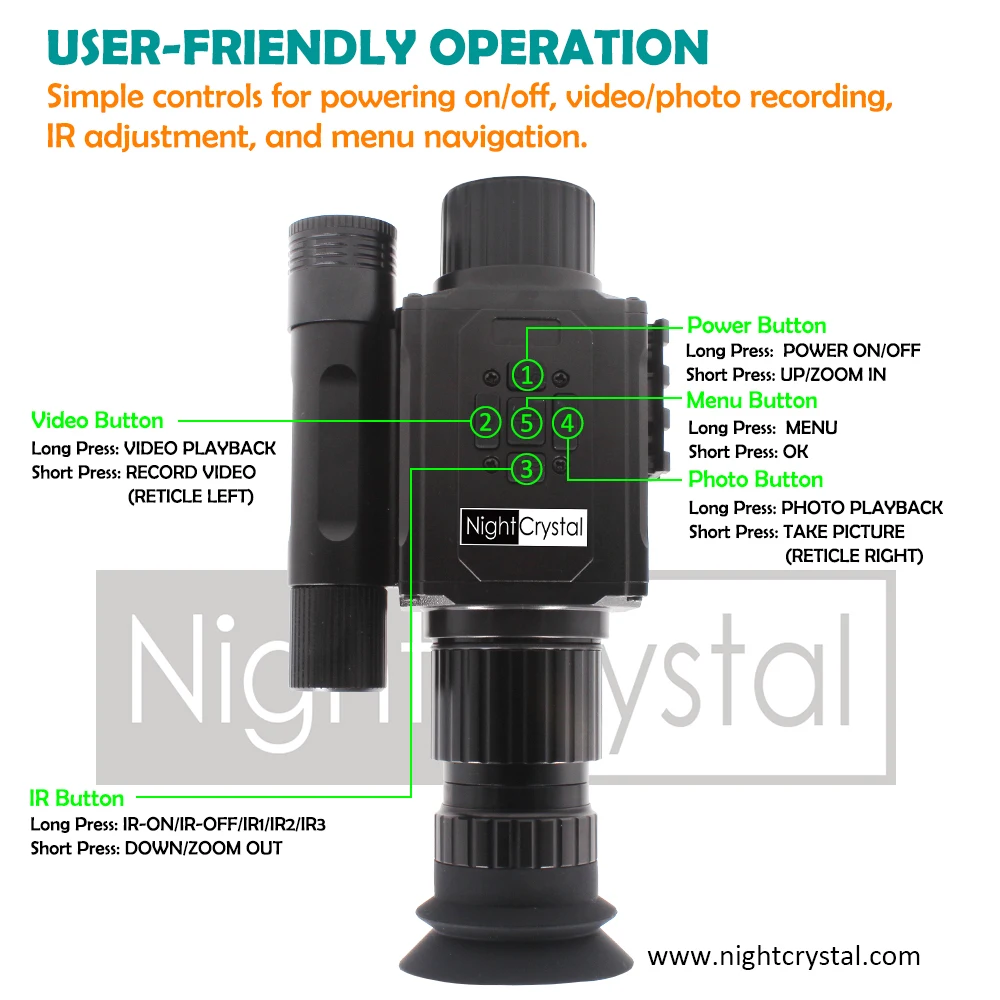

Control Buttons and Functions

The night vision device is equipped with several buttons for easy control and operation. Each button has both short press and long press functions, allowing you to access various features such as power on/off, menu navigation, photo/video capture, and IR flashlight control.

1. POWER/UP
Long Press: Turn the device ON/OFF.
Short Press: Zoom in or move up in the menu
2. VIDEO/LEFT
Long Press: Playback recorded videos
Short Press: Start/stop video recording or move left.
3. IR/DOWN
Long Press: Turn IR ON/OFF, Switch between IR1/IR2/IR3
Short Press: Zoom out or move down in the menu
4. CAMERA/RIGHT
Long Press: View captured photos.
Short Press: Take a photo or move right.
5. MENU/OK
Long Press: Open or close the settings menu.
Short Press: Select an option in the menu.

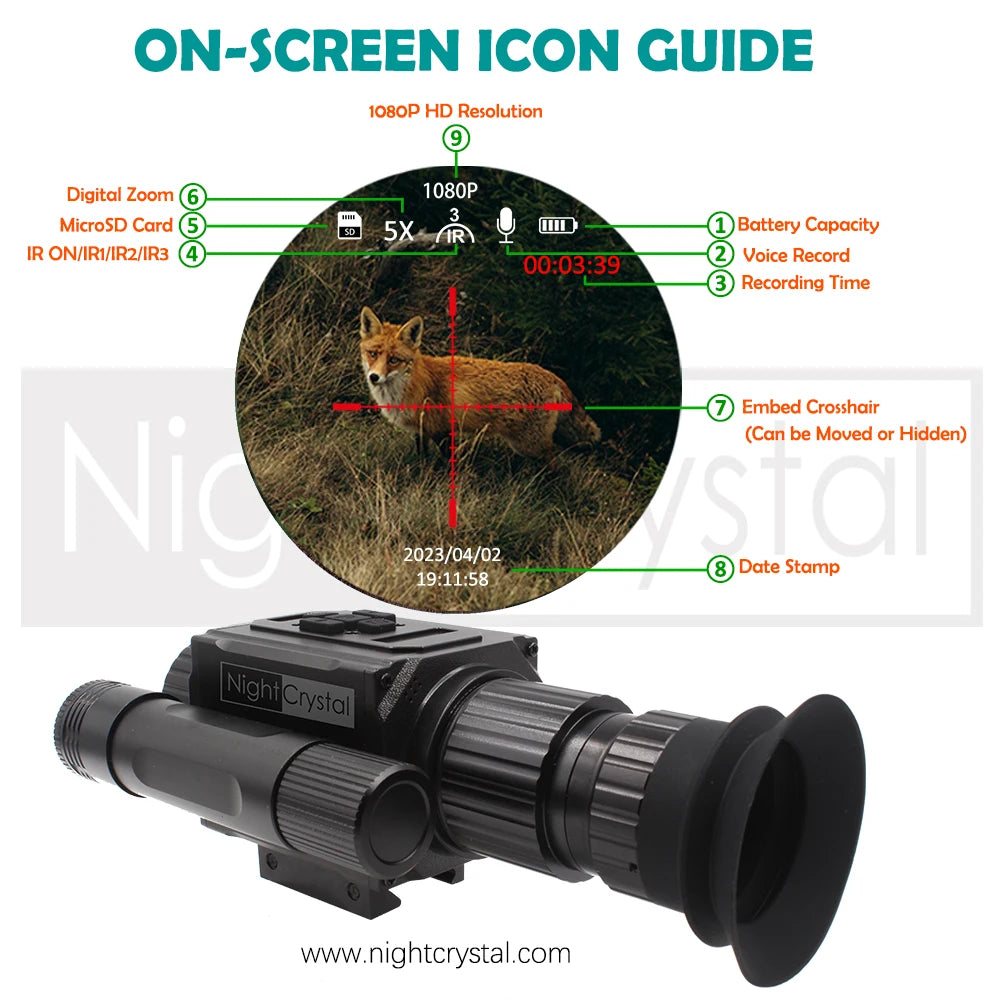

On-Screen Icon Guide

The following icons provide essential information about the device's status and settings:

1). Battery Capacity: Displays the remaining battery level. A red icon indicates low battery.
2). Voice Record: Appears when the microphone is recording sound.
3). Recording Time: Shows the duration of the current video recording.
4). IR ON/IR1/IR2/IR3: Indicates the IR flashlight status and power level (IR1 is low, IR3 is high).
5). MicroSD Card: Displays when a MicroSD card is inserted. A warning icon indicates issues with the card.
6). Digital Zoom: Appears when digital zoom is active, indicating the magnification level.

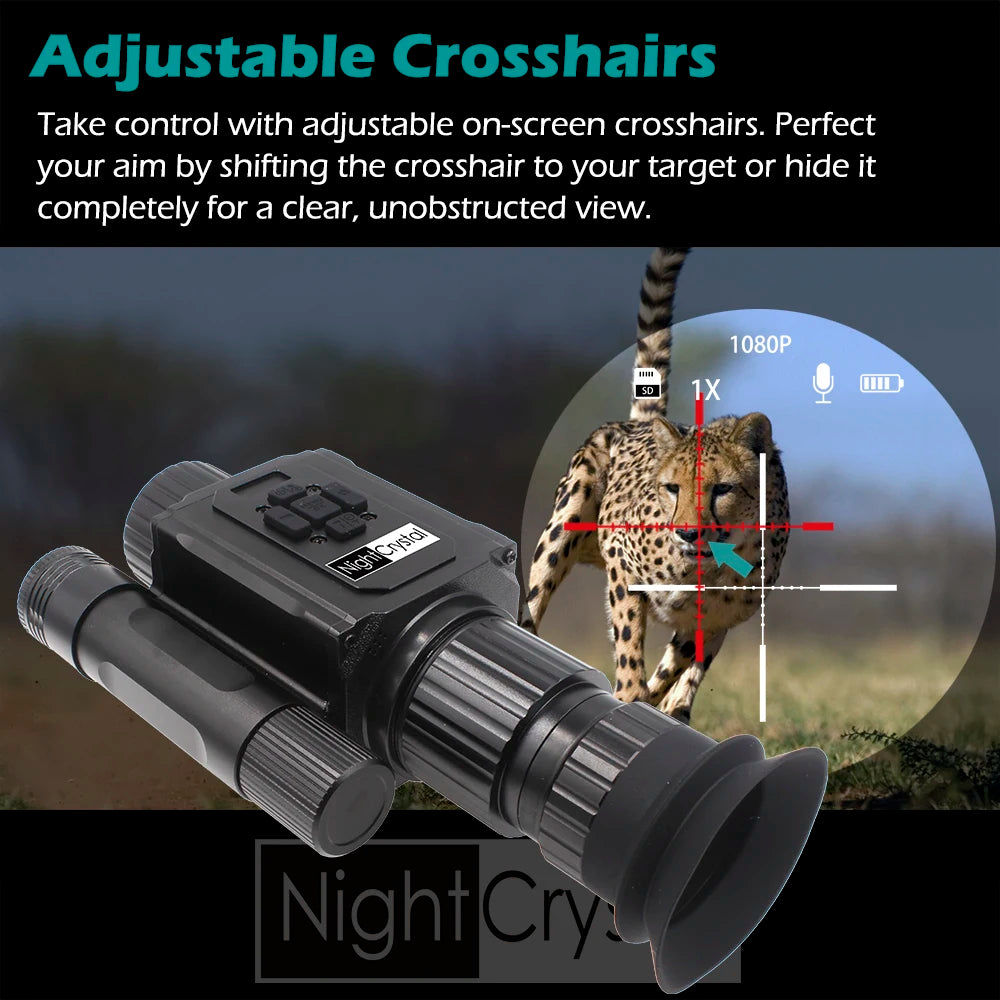

7). Embed Crosshair: Shows if the crosshair is enabled. It can be moved or hidden via settings.
8). Date Stamp: Displays the current date and time on the screen.
9). 1080p HD Resolution: Indicates when the device is recording or displaying in 1080p HD.

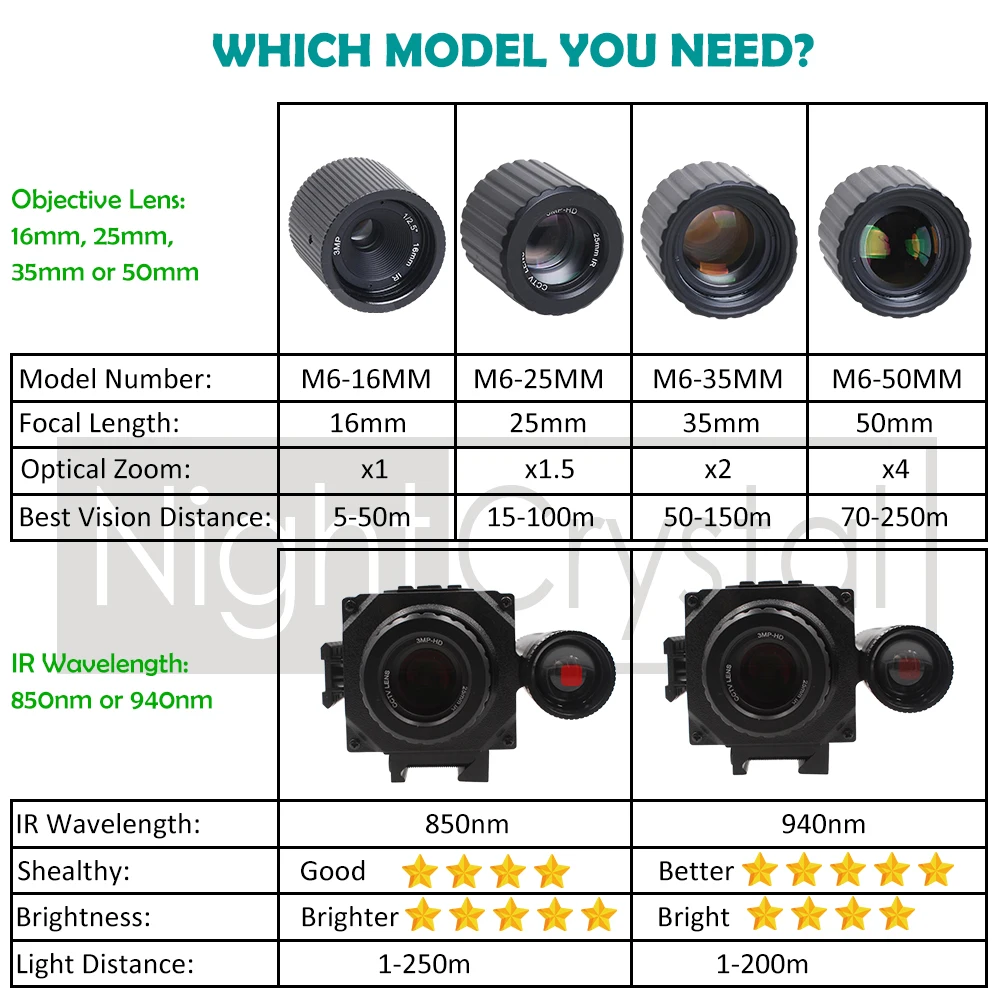

WHICH SPECIFICATION YOU NEED?

IR Options: The NightCrystal M6 offers two selectable IR light wavelengths:

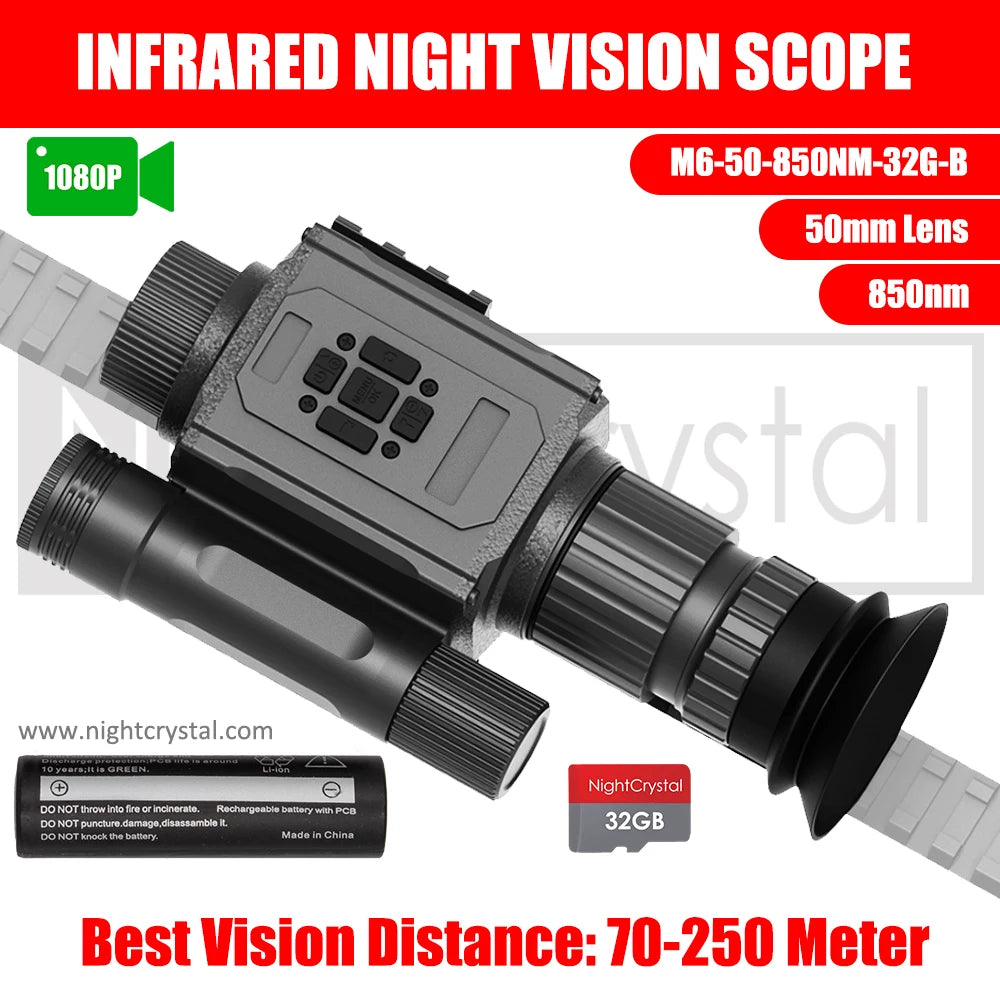

850nm IR: Provides a bright beam with a faint red glow, ideal for distances up to 250 meters.

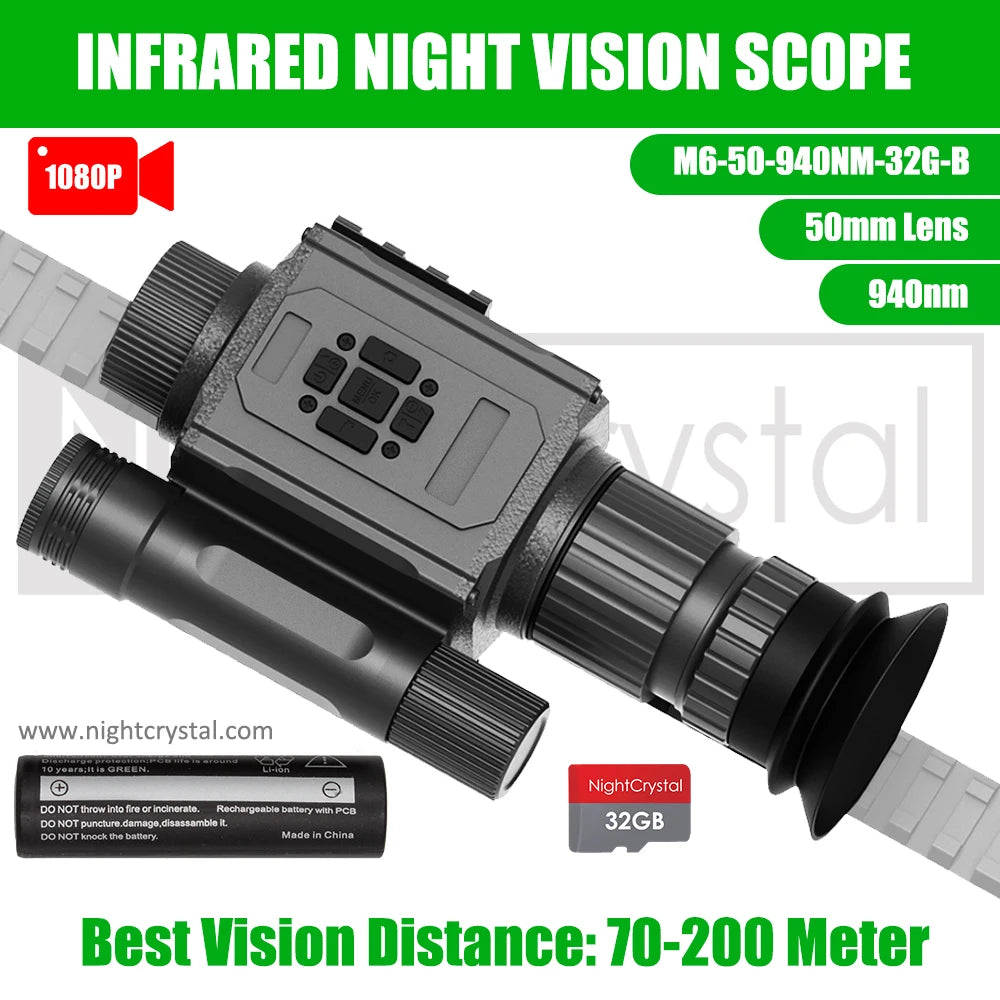

940nm IR: Produces an invisible beam for stealth operations, effective up to 200 meters. Please select the IR setting that best suits your specific needs.
Lens Options: The NightCrystal M6 offers four selectable objective lens:

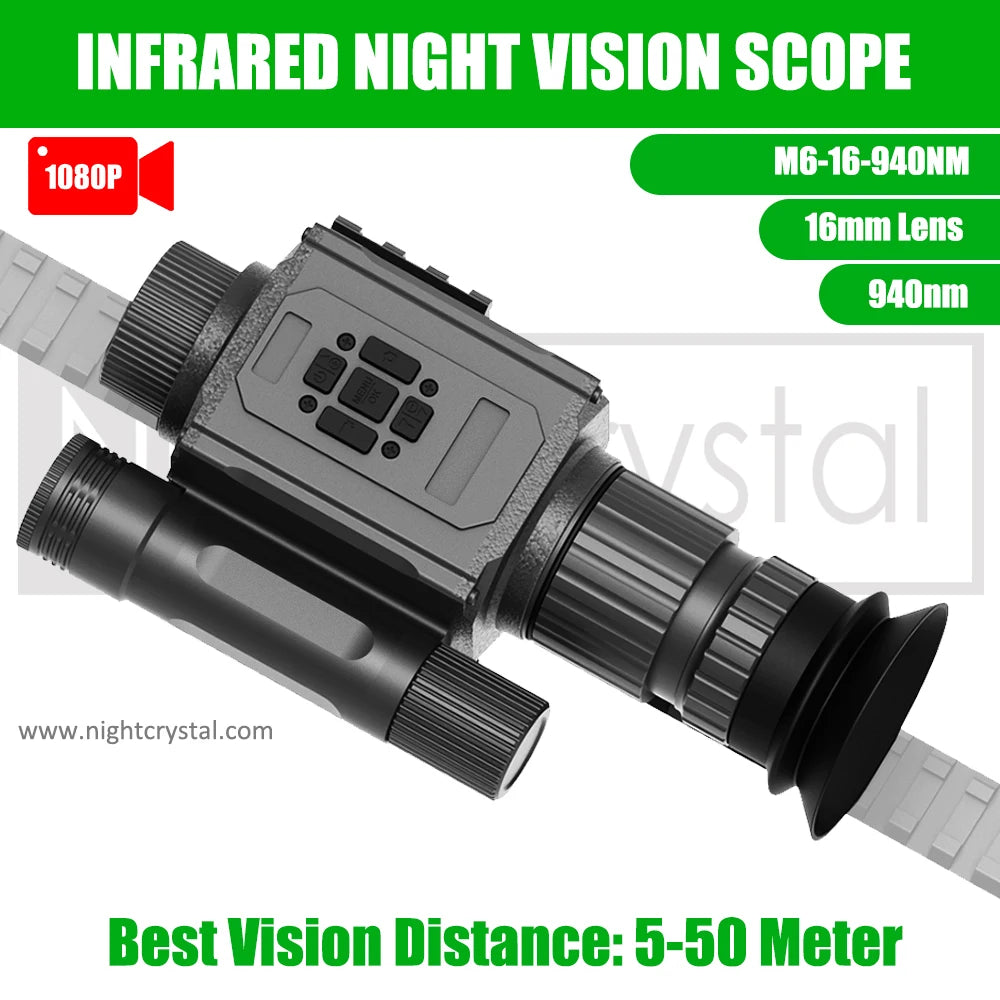

16mm 1x Optical Magnifying Lens: Recommended observation distance: 5-50 meters.
25mm 1.5x Optical Magnifying Lens: Recommended observation distance: 15-100 meters.
35mm 2.5x Optical Magnifying Lens: Recommended observation distance: 50-150 meters.
50mm 4x Optical Magnifying Lens: Recommended observation distance: 70-250 meters.
NOTE:

The digital 16mm/25mm/35mm/50mm refers to focal length, not the diameter of the lens.
